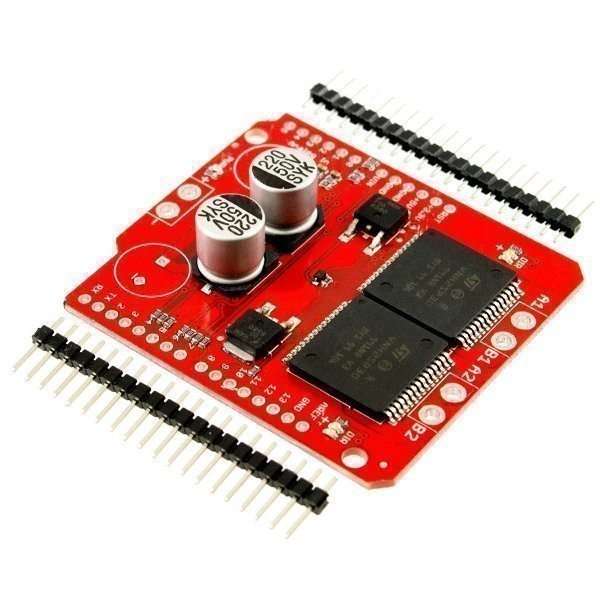

Dual Monster Moto Shield VNH2SP30 DC Motor Driver 2x14A (Peak 30A)

Dual Monster Moto Shield VNH2SP30 DC Motor Driver 2x14A (Peak 30A)

Dual Monster Moto Shield VNH2SP30 DC Motor Driver 2x14A (Peak 30A)

Dual Monster Moto Shield VNH2SP30 DC Motor Driver 2x14A (Peak 30A)

710.00

In stock

710.00

Dual Monster Moto Shield VNH2SP30 DC Motor Driver 2x14A (Peak 30A)
Availability: In stock SKU: IWP-00456 Categories: , , ,
  • Description
  • Reviews (0)

Description

Dual Monster Moto Shield VNH2SP30 DC Motor Driver 2x14A (Peak 30A)

We’ve also beefed up the support circuitry so this board is capable of driving a pair of high-current motors! The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.

Note:

When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a high-current system) However, when using the board at currents up to 6A the chips will barely become noticeably warm.


Key Points :

  1. Current sensing available to Arduino analog pin
  2. MOSFET on-resistance: 19 mΩ (per leg)
  3. Maximum PWM frequency: 20 kHz
  4. Thermal Shutdown
  5. Under-voltage and Overvoltage shutdown.

Package Includes:

1 xDual Monster Moto Shield VNH2SP30 DC Motor Driver 2x14A (Peak 30A)
