Description

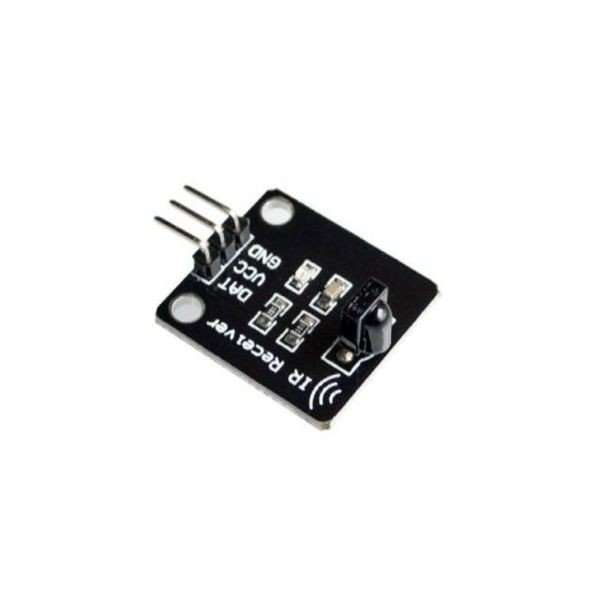

IR Receiver Sensors Module

Digital 38KHz IR Receiver Sensors Switch Detector Module Infrared Transducer Boards 38KHz IR Receiver for Arduino.

Description:

1.1838 remote control receiver head, high sensitivity

2. working voltage 5V

3. output form: digital output

4. with 2 fixed holes, easy installation. Aperture 3.1mm

5. band data indicator

6.PCB size: 23.5*21.5mm

Wiring instructions:

1.DAT digital output interface

2.VCC 5V DC power positive

3.GND 5V DC power negative

Package Included:

1 * infrared receiving sensor
