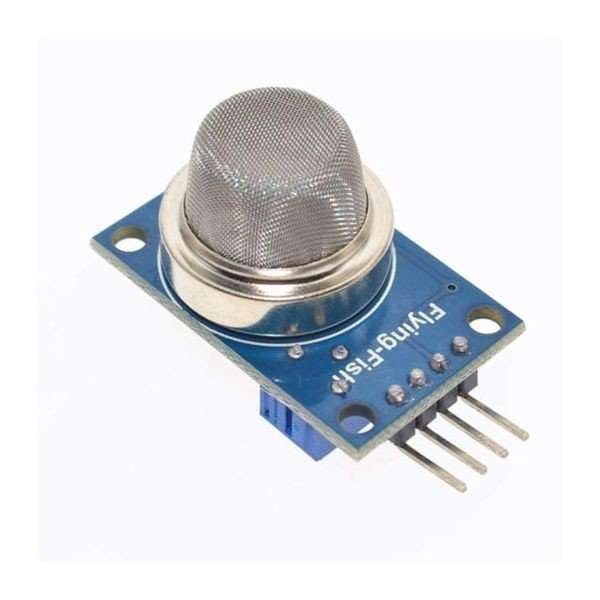

MQ-6 Liquefied Gas Isobutane Propane LPG Gas Sensor Module For Arduino

Availability: In stock (can be backordered) SKU: IWP-00417 Categories: , ,
  • Description
  • Additional information
  • Reviews (0)

Description

MQ-6 Liquefied Gas Isobutane Propane LPG Gas Sensor Module For Arduino

Features :
  • Sensitive material MQ-6 gas sensor is used to clean the air in the lower conductivity of tin dioxide (SnO2). When there is the environment in which the combustible gas sensor , conductivity sensor with increasing concentration of combustible gases in air increases .
  • Using a simple circuit to convert the change in conductivity of the gas concentration corresponding to the output signal.
  • MQ-6 gas sensor for propane , butane , liquefied petroleum gas sensitivity is high, natural gas and has a good sensitivity. This sensor can detect a variety of flammable gas , is a low-cost sensors for a variety of applications.
  • Suitable for home or industrial LPG ( liquefied petroleum gas ) , butane , propane , LNG ( liquefied natural gas ) detection devices. Excellent resistance to ethanol vapor , smoke interference.



Electrical Performance:
Dection of gas: Liquefied gas /Isobutane/Ppropane/LPG
Dection of Concentration:300-10000ppm
Input voltage: DC5V
Power consumption (current): 150mA
DO output: TTL digital quantities 0 and 1 (0.1 and 5V)
AO output: 0.1-0.3V (relatively non-polluting), the highest concentration voltage is about 4V
Using the chip: AT89S52
Crystal: 11.0592MHZ
Baud rate: 9600
Compilation environment: Keil
Special Reminder:
After the sensor is energized, it needs to be preheated for about 20S, and the measured data is stable. The heating of the sensor is a normal phenomenon, because there is a heating wire inside, if it is hot, it is not normal.
Package Included:
1 x MQ-6 Gas Sensor Module



Additional information

Weight0.01 kg
