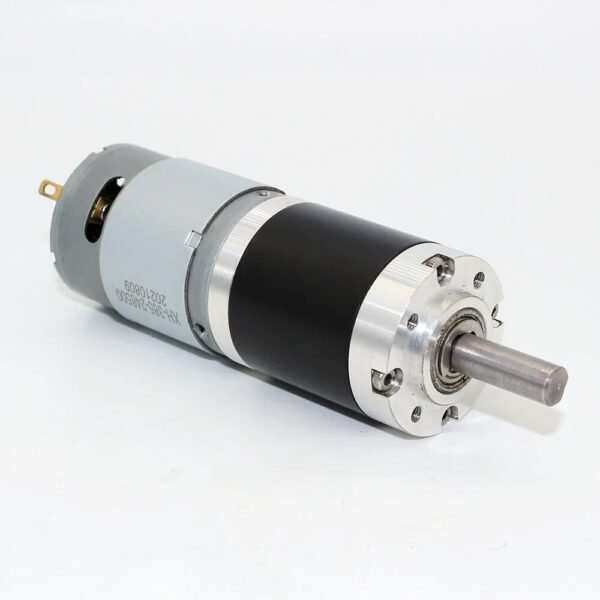

Planetary Gear Motor – High Torque

1,499.00 (incl GST)

1,270.34 (+18% GST extra)

Planetary Gear Motor – High Torque for robowar

Availability: In stock SKU: IWP-01339 Category: Tags: ,

Description

The planetary geared motors are always well known for their low backlash and higher efficiency characteristic to meet the higher expectation.

This is 12V DC motor which has a gearbox of 36mm diameter.

The planetary type gearbox of this motor has a metal gears and a center shaft.

The Shaft of the motor is loaded with bearing for wear resistance and smooth operation.

We highly suggest you this motor for the general purpose automation projects requiring considerable torque range.

Specifications:-

  • Motor Type: DC Planetary Gear Motor
  • Gear Material: Metal
  • Motor Length: 57mm
  • Shaft Length: 20mm
  • Total Length: 100mm
  • Gearbox Diameter: 36mm
  • Motor Diameter: 36mm
  • Shaft Diameter: 8mm
  • Weight: 350g
  • Rated Voltage : 12
  • Reduction Ratio : 1:51
  • No load Speed : 117 RPM
  • No load Current : 230mA
  • Rated Load Speed : 100 RPM
  • Rated Load Current : 1.5A
  • Stall Torque : 30kgcm/22kgcm
  • Stall Current : 6.5 A
  • Gearbox Length -L : 55mm

Product Includes:-

1x 110 RPM 12v 36MM DC Planetary Gear Motor  – High Torque

or

1x 290 RPM 12v 36MM DC Planetary Gear Motor  – High Torque

Additional information

Weight0.35 kg
Dimensions57 × 20 × 100 cm
