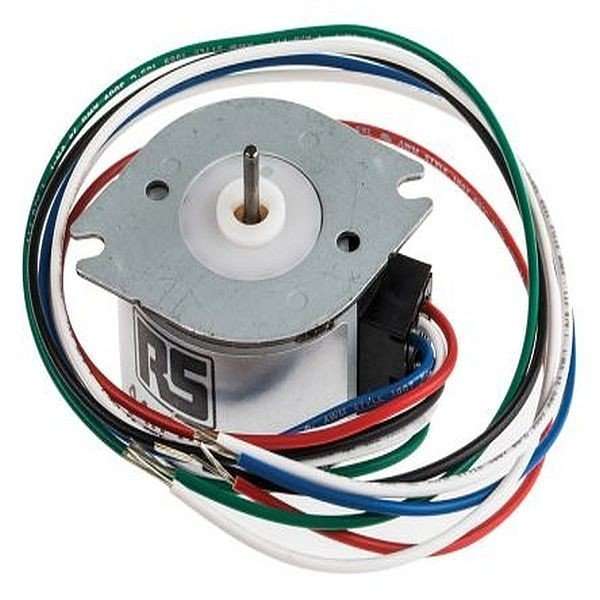

Stepper Motor mini

Stepper-Motor-mini-iotwebplanet

Stepper Motor mini

150.00

In stock

177.00 (incl GST)

150.00 (+18% GST extra)

Unipolar Permanent Magnet Stepper Motor 7.5°, 20mNm, 12.7 V dc, 190 mA, 6 Wires



Availability: In stock (can be backordered) SKU: IWP-00830 Categories: , Tags: ,

Description

Stepper Motor mini

Permanent magnet four-phase hybrid stepper motors with 7.5 or 15° step angles. The motors have 6-lead connections and are consequently suitable for use with either unipolar or bipolar drives.

Specifications
AttributeValue
Step Angle7.5°
Holding Torque20mNm
Number Of Wires6
Voltage Rating12.7 V dc
Stepper Motor TypePermanent Magnet
Shaft Diameter2mm
Current Rating190 mA
Winding ArrangementUnipolar
Shaft Length7.8mm
Depth21.7mm
Number of Pole Pairs2
Resistance Per Phase66Ω

Additional information

Weight.100 kg
